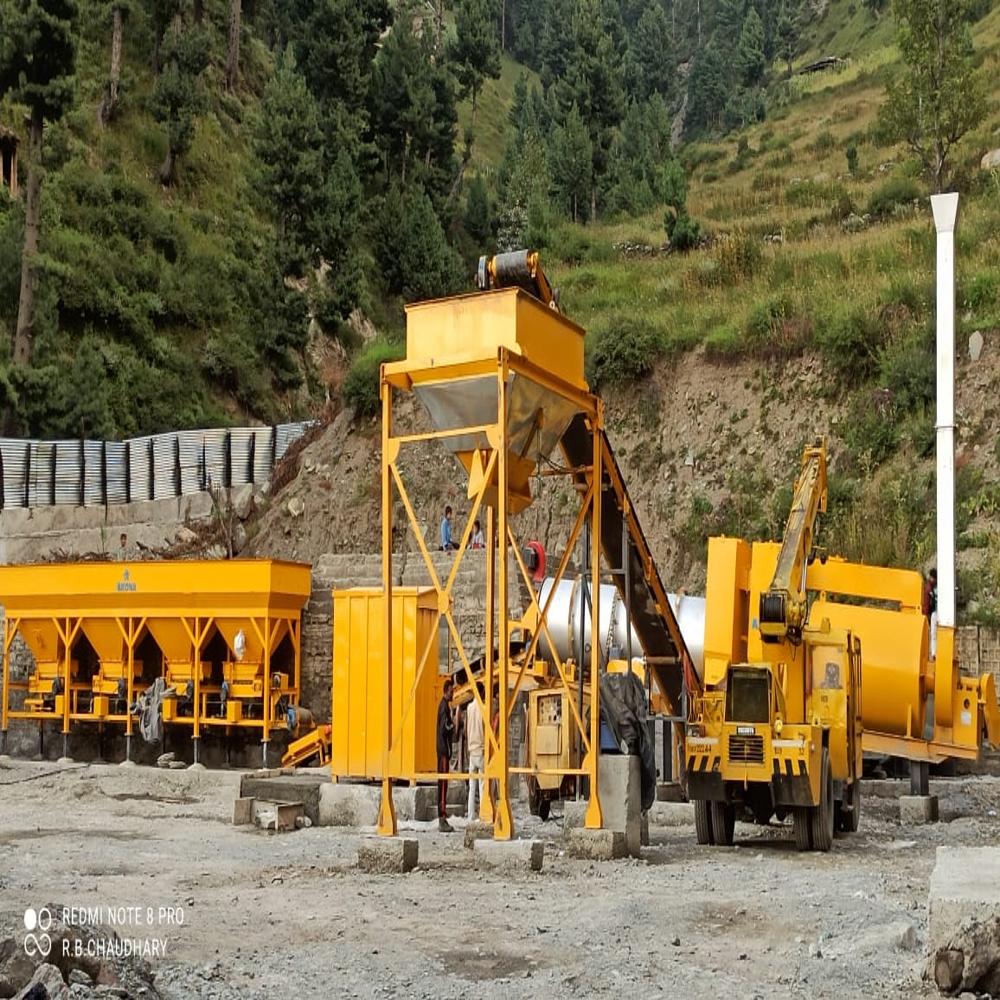

Mobile Hot Mix Plant
Product Details:
- Type Mobile Hot Mix Plant
Mobile Hot Mix Plant Price And Quantity
- 1 Unit
- 1000000.00 - 5000000.00 INR/Unit
Mobile Hot Mix Plant Product Specifications
- Mobile Hot Mix Plant
Mobile Hot Mix Plant Trade Information
- 3 Unit Per Week
- 15 Days
- Australia South America Western Europe Middle East Central America Asia Eastern Europe North America Africa
- All India
- CE, ISO
Product Description
Being a client-centric organization, we have been employing industrious efforts in manufacturing, supplying and exporting Mobile Hot Mix Plant. All the offered plants are designed and manufactured using quality material and components that are sourced from the reliable vendors of the market. We also have the capability to customize all the Mobile Hot Mixer Plant as per the specifications laid down by the customers.
The above plant is complete in all respect including the following:
1) Four Bin Feeder fitted with variable speed motors and Gear Box.
2) Slinger Conveyor for feeding cold aggregates into the dryer drum.
3) Multi-cyclone exhaust system.
4) Hot conveyor fitted with gob hopper for discharging hot mix material onto tipper truck.
5) Mineral Filler fitted with rotary and blower
6) Glass Wool insulated bitumen (asphalt) tank fitted with burner and bitumen pump station.
7) Fuel Storage tank.
8) Fully automatic control panel with control cabin.
Technical Specification and Power Requirements:
| Technical Specification | ||
| Model | DM-60 | DM-90 |
| DRYER | ||
| Length (M) | 6.25 | 6.25 |
| Diameter (M) | 1.3 | 1.5 |
| Exhauster (CFM) | 10500 | 14500 |
| Burner Rating (Ltr/Hr.) | 250 | 350 |
| BIN FEEDER | ||
| No. Of Bins | 4 | 4 |
| Bin Capacity (MT) | 8 | 10 |
| Belt Feeder Width (mm) | 500 | 500 |
| Gathering Conveyor with (mm) | 600 | 600 |
| SLINGER CONVEYOR | ||
| Conveyor with (mm) | 600 | 600 |
| LOADOUT CONVEYOR | ||
| Conveyor With (mm) | 600 | 600 |
| Load Out Height (m) | 3.2 | 3.2 |
| Hopper Capacity (Kg.) | 750 | 750 |
| Power Requirements | ||
| Drum Drive (HP) | 20 | 25 |
| Exhauster (HP) | 20 | 25 |
| Bin Feeder Hopper (HP) | 4x2 | 4x2 |
| Gathering Conveyor (HP) | 5 | 5 |
| Slinger Conveyor (HP) | 5 | 5 |
| Vibratory Screen(HP) | 1 | 1 |
| Load out Conveyor (HP) | 5 | 5 |
| Hydraulic Power pack(HP) | 3 | 3 |
| Bitumen (Asphalt) Pump(HP) | 3 | 3 |
| Filler Unit | ||
| Rotary Valve (HP) | 2 | 2 |
| Blower (HP) | 5 | 5 |
| Dryer Automatic Burner | ||
| Fuel Pump (HP) | 2 | 2 |
| Blower (HP) | 5 | 10 |
| Hot Oil Pump (HP) | 0.5 | 0.5 |
| Bitumen Tank | ||
| Capacity (MT) | 15 | 20 |
| Fuel Tank | ||
| Capacity (Ltrs.) | 5000 | 5000 |
